Ready-made SCADA station — for your factory
Industrial computer IWILL IBOX-3026 with pre-installed SCADA system. 6x COM ports for direct connection to PLC controllers. No expensive licences.
Why do you need a ready-made SCADA station?
Expensive HMI panels
Siemens, Beckhoff and Advantech HMI panels cost thousands of pounds and require expensive licensed software.
Lack of COM ports
Standard computers do not have RS232/RS485 serial ports for PLC connection. Expensive USB converters are required.
Fans + dust = breakdown
Ordinary PCs overheat and shut down in hot and dusty industrial environments.
Annual licences
Wonderware, Ignition and other SCADA systems require annual licences costing thousands of pounds.
The Solution?
IWILL IBOX-3026 + RapidSCADA/ScadaBR = a professional SCADA station at the price of an ordinary computer. No annual licences. With 6x COM ports for direct PLC connection.

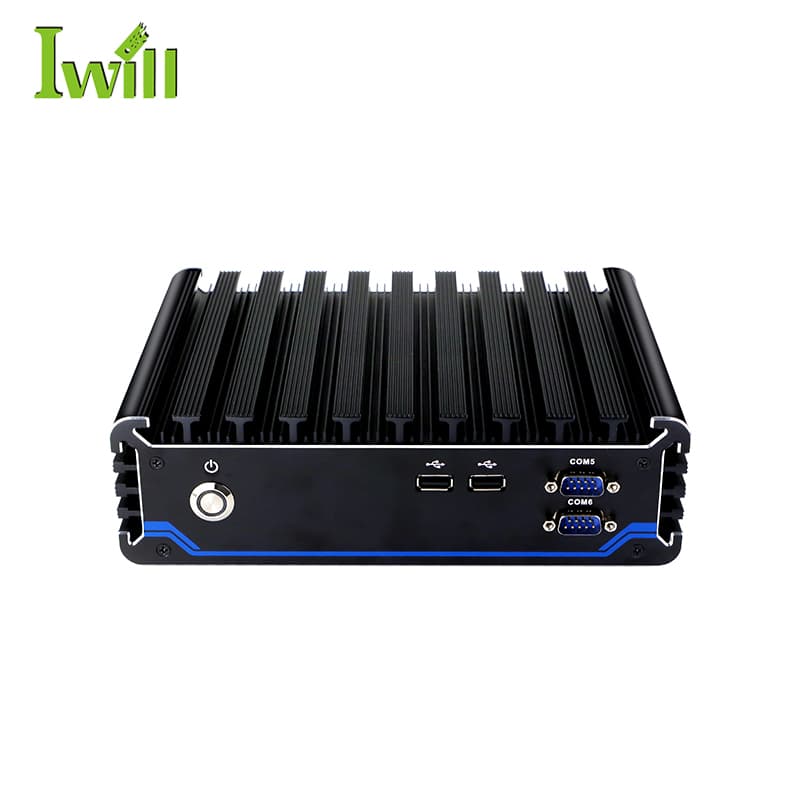

IWILL IBOX-3026
Industrial, silent, built for 24/7 operation in harsh conditions. Everything you need for a SCADA/HMI station.
RS232/RS485 for PLC
Tiger Lake, 4C/8T
Aluminium enclosure
Pre-installed
Why are 6x COM ports key for SCADA?
Direct console connection to PLC
Modbus RTU bus for sensors
Additional devices or spares
Choose your SCADA software
RapidSCADA and ScadaBR are the two leading open-source SCADA systems. Both are fully compatible and tested with the IBOX-3026.
Both options work perfectly on the IBOX-3026. We can supply the device with your preferred software pre-installed.
Where does the IBOX-3026 fit?
Click on each card to see the diagram and list of capabilities.
- Direct Modbus RTU connection to PLC via COM ports
- HMI panel with graphical process visualisation
- Alarm system with email/SMS notifications
- Historical data and trends for analysis
- Automatic performance reports
- BACnet MS/TP and BACnet/IP for HVAC systems
- Monitoring of temperature, humidity and CO2
- Automatic air conditioning control
- Lighting and energy-saving schedules
- Centralised web interface for management
- Modbus RTU for connecting power meters
- Real-time consumption monitoring
- Automatic reports per ISO 50001
- Alarms when limits are exceeded
- MQTT integration for IoT platforms
- Monitoring of level, flow and pressure
- Automatic pump control
- Alarms for emergency level or leakage
- Remote access via VPN
- Integration with central SCADA system
Compare the 3-year cost
* Approximate prices excluding VAT. Price for the IBOX-3026 SCADA Ready package (£1,075).
Up to 4x lower cost over 3 years
without compromising on functionality
Configurations
Hardware Only
Self-installation
- IBOX-3026 (i7-1165G7 + 32GB + 256GB SSD)
- Power supply adapter
- No operating system
- No SCADA software
SCADA Ready
Plug and play
- IBOX-3026 (i7 + 32GB + 256GB SSD)
- Linux (Debian/Ubuntu) installed
- RapidSCADA or ScadaBR installed
- Basic COM port configuration
- 30 min online assistance at start-up
- 72-hour burn-in test
Complete Solution
Everything configured for you
- IBOX-3026 (i7 + 32GB + 256GB SSD)
- Linux + RapidSCADA/ScadaBR
- Full Modbus RTU/TCP configuration
- OPC UA server setup
- Customised alarm rules
- HMI visualisation to your design
- Remote access (VPN)
- 2 hours remote support
* Approximate prices excluding VAT. Exact quote on request.
Configure your IBOX-3026
Choose software and services and see the approximate price. Send the configuration directly via WhatsApp for an exact quote.
Your Configuration
* Approximate prices excluding VAT.
What can the IBOX-3026 do as a SCADA station?
Frequently Asked Questions
Yes. The IBOX-3026 has 6x COM ports (RS232/RS485) which allow direct serial connection to PLC controllers from Siemens S7-200/300, Allen-Bradley MicroLogix, Schneider Modicon and all Modbus RTU devices. No additional converter is required.
RapidSCADA is an open-source SCADA system with full functionality: real-time monitoring, alarm system, trends and historical data. The licence is free and does not require annual fees. It supports Modbus RTU/TCP, OPC UA and numerous other protocols.
Via COM ports: Modbus RTU, Modbus ASCII, PROFIBUS, BACnet MS/TP. Via Ethernet: Modbus TCP, OPC UA, BACnet/IP, MQTT. RapidSCADA and ScadaBR support all these protocols through built-in drivers.
Yes. The fanless design and operating temperature range of -20°C to 60°C make the IBOX-3026 ideal for continuous operation in industrial environments. The aluminium enclosure serves as a passive heatsink, and the Phoenix connector for power supply ensures a reliable connection under vibration.
With 6x COM ports you can connect 6 separate RS485 buses. Each RS485 bus supports up to 32 devices (or up to 256 with repeaters). Additionally, via the two Gigabit LAN ports you can connect Modbus TCP devices without limitation.
2 years hardware warranty with local service in the UK. The SCADA software (RapidSCADA/ScadaBR) is open-source and is maintained by the respective communities.
Yes. RapidSCADA supports OPC UA client and server. You can connect the IBOX-3026 to other SCADA systems and MES/ERP platforms via the standard OPC UA protocol.
Yes, the IBOX-3026 supports Windows 10/11 and Linux for standard use. This page is focused on the SCADA/HMI application. With the Intel i7-1165G7 and 32GB RAM, the machine is fully capable of any task.
Ready to modernise your production?
Contact us for a free consultation. We will help you choose the right SCADA configuration for your needs.
