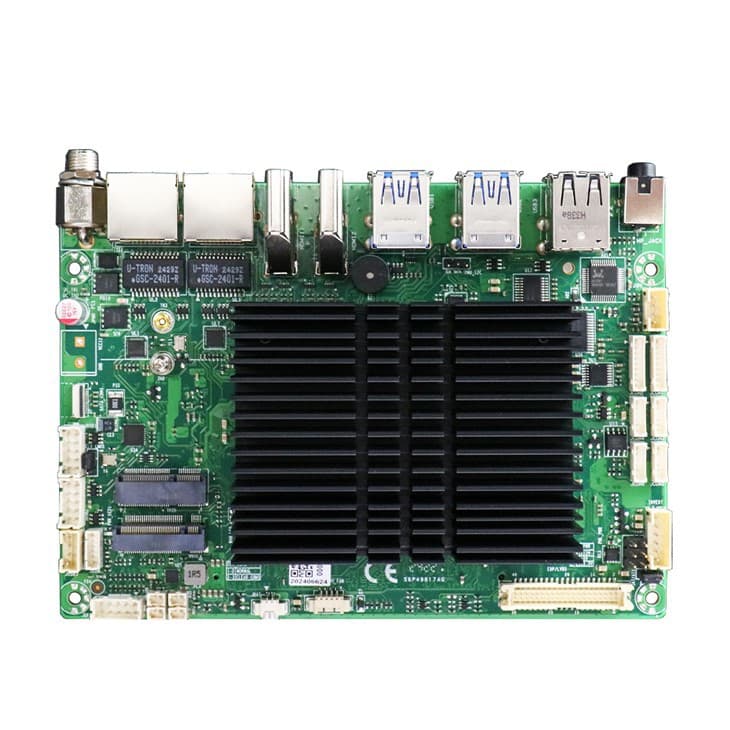

HI-J6412D26 – Industrial Motherboard

Name: HI-J6412D26 Industrial Motherboard
Brand: IWILL
SKU: HI-J6412D26

3.5" industrial motherboard with Intel J6412, dual LAN (I210), 6x COM

Motherboards

Features

Intel Celeron J6412 (4 cores, up to 2.6GHz, 10W TDP)
1x DDR4 3200MHz SO-DIMM, up to 16GB
Triple display: HDMI + DP + eDP/LVDS
2x Gigabit LAN (Intel I210)
6x COM (RS232/RS485/TTL)
2x USB 3.0 + 4x USB 2.0
Compact size 148×102mm

Email WhatsApp

3 Years

Warranty

Fast

Delivery

Support

In English

Technical Specifications

Processor

Intel Celeron J6412 (4C/4T, 2.0/2.6GHz, 10W TDP)

Memory

1x DDR4 3200MHz SO-DIMM, up to 16GB

Network

2x Gigabit LAN (Intel I210)

Display

HDMI (4096×2160@30Hz) + DP (4096×2160@60Hz) + eDP/LVDS

Storage

1x SATA 3.0 + 1x M.2 2242/2280 (SATA/NVMe)

I/O

6x COM, 2x USB 3.0, 4x USB 2.0

Dimensions

148 × 102mm (3.5")

Power Supply

DC 12V

Expansion & Connectivity

1x M.2 KEY-B (USB 3.0 + PCIe X1)

1x M.2 KEY-E (PCIe X1 + USB 2.0)

1x SATA 3.0

Operating Environment

Operating Temperature0°C to 60°C

Storage Temperature-20°C up to 75°C

Humidity10% - 90% non-condensing

Supported OS

Windows 10Windows 11Linux

Applications

Medical EquipmentCommunication systemsIndustrial AutomationEmbedded systems

Description

HI-J6412D26 is compact 3.5-inch (148×102mm) industrial motherboard with Intel Celeron J6412 (Elkhart Lake) processor. Featuring with dual Intel I210 gigabit LAN, 6 serial ports with RS232/RS485/TTL support, triple display (2x HDMI + eDP/LVDS) and 10W TDP for fanless operation. Ideal for medical, communication and industrial automation systems.
