IBOX-101 Plus – Fanless Industrial PC

Name: IBOX-101 Plus Fanless Industrial PC
Brand: IWILL
SKU: IBOX-101PLUS

Compact industrial PC with Intel Celeron J1900, LVDS output

Industrial PCs

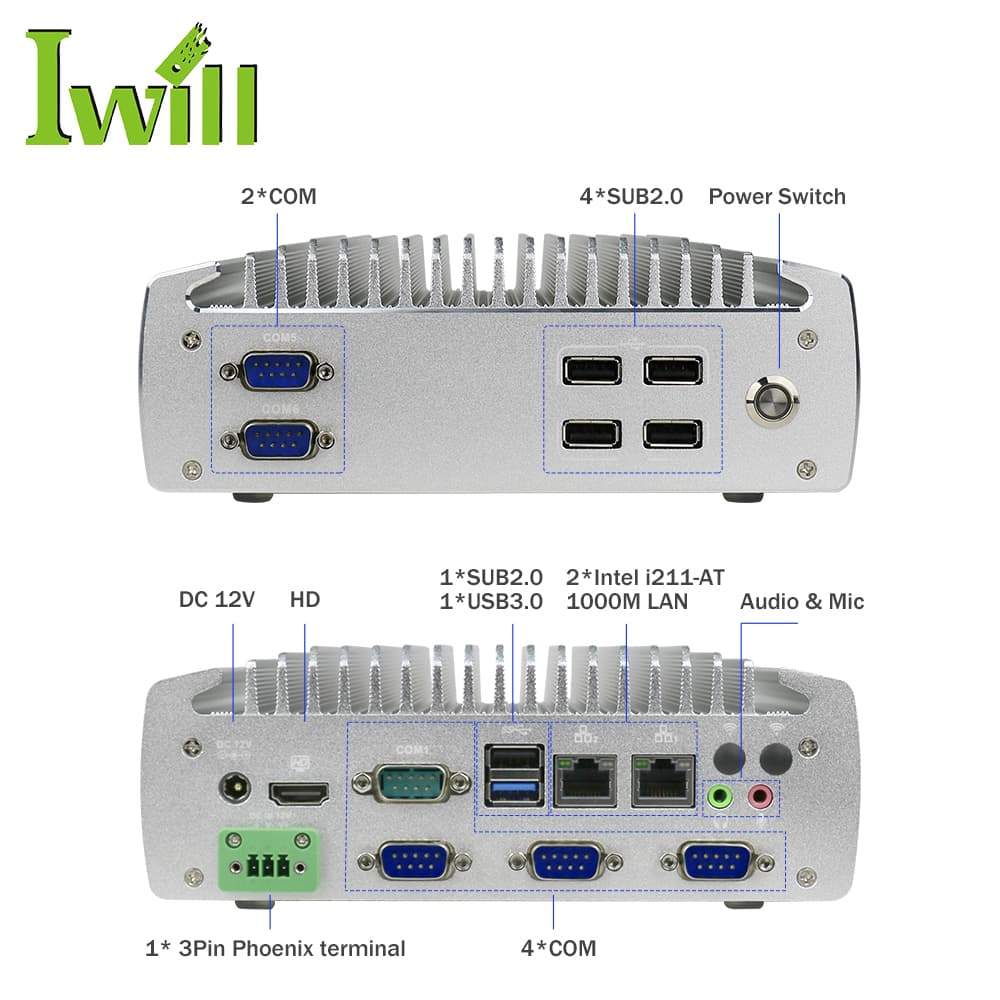

Features

Intel Celeron J1900 (4 cores, 1.99GHz, 10W TDP)
2x 1000M LAN
2x COM ports
1x HDMI, 1x LVDS
Fanless design
Compact chassis

Email WhatsApp

Datasheet

PDF documentation

3 Years

Warranty

Fast

Delivery

Support

In English

Technical Specifications

Processor

Intel Celeron J1900 (4 cores, 1.99GHz, 10W TDP)

Memory

1x DDR3L SODIMM, up to 8GB

Network

2x 1000M LAN

Serial Ports

2x COM

Storage

1x mSATA + 1x 2.5" HDD

I/O

4x USB 2.0

Display

1x HDMI, 1x LVDS

Dimensions

186 × 150 × 66mm

Weight

1.6kg

Expansion & Connectivity

1x mSATA

1x 2.5" HDD slot

Operating Environment

Operating Temperature0°C to 50°C (commercial), -20°C to 60°C (industrial)

Storage Temperature-30°C to 70°C

Humidity5% - 95%

Supported OS

Windows 10Windows 11Linux

Applications

IoT GatewaySerial ServerLight industrial applications

Description

IBOX-101 Plus is a budget industrial PC with Intel Bay Trail processor.
