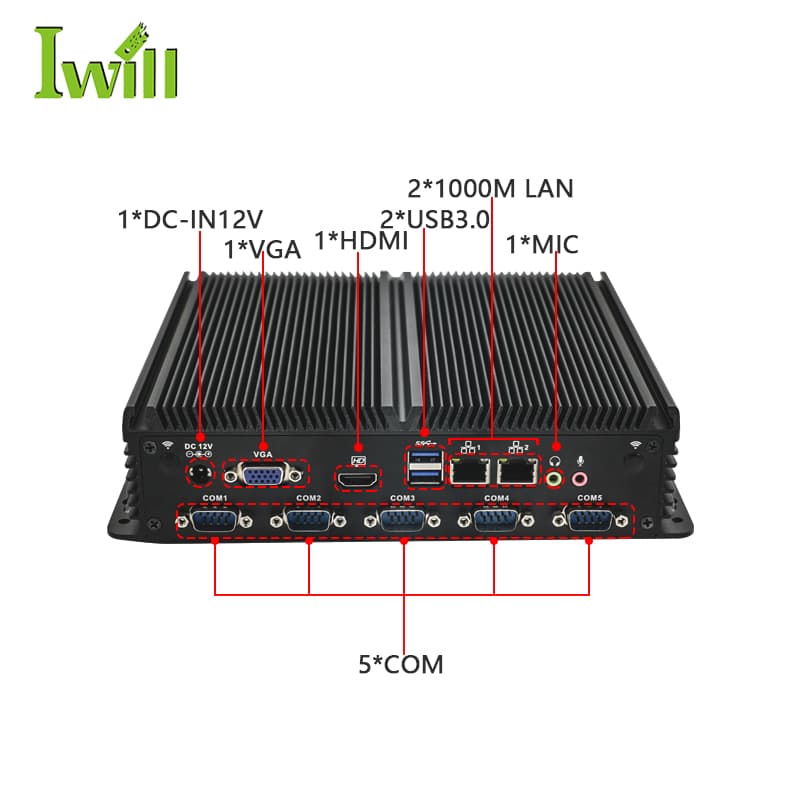

IBOX-1026 – Fanless Industrial PC

Name: IBOX-1026 Fanless Industrial PC
Brand: IWILL
SKU: IBOX-1026

Industrial PC with Intel Celeron J4125, 5x COM, 4K display

Industrial PCs

Features

Intel Celeron J4125 (4 cores, 2.0GHz up to 2.7GHz)
2x 1000M LAN
5x COM ports
4K@30Hz display support
1x HDMI, 1x VGA
Fanless design

Email WhatsApp

Datasheet

PDF documentation

3 Years

Warranty

Fast

Delivery

Support

In English

Technical Specifications

Processor

Intel Celeron J4125 (4 cores, 2.0GHz up to 2.7GHz)

Memory

1x DDR4 2400MHz, up to 8GB

Network

2x 1000M LAN

Serial Ports

5x COM

Storage

1x M.2 2280 + 1x 2.5" HDD

I/O

4x USB 2.0, 2x USB 3.0

Display

4096×2160@30Hz (1x HDMI, 1x VGA)

Dimensions

234 × 200 × 54mm

Weight

2kg

Expansion & Connectivity

1x M.2 2280

1x 2.5" HDD slot

Operating Environment

Operating Temperature-20°C to 60°C

Storage Temperature-30°C to 70°C

Humidity5% - 95%

Supported OS

Windows 10Windows 11Linux

Applications

Serial GatewayLight applicationsProtocol Converter

Description

IBOX-1026 is an industrial PC with Intel Celeron J4125 and 4K resolution support.
