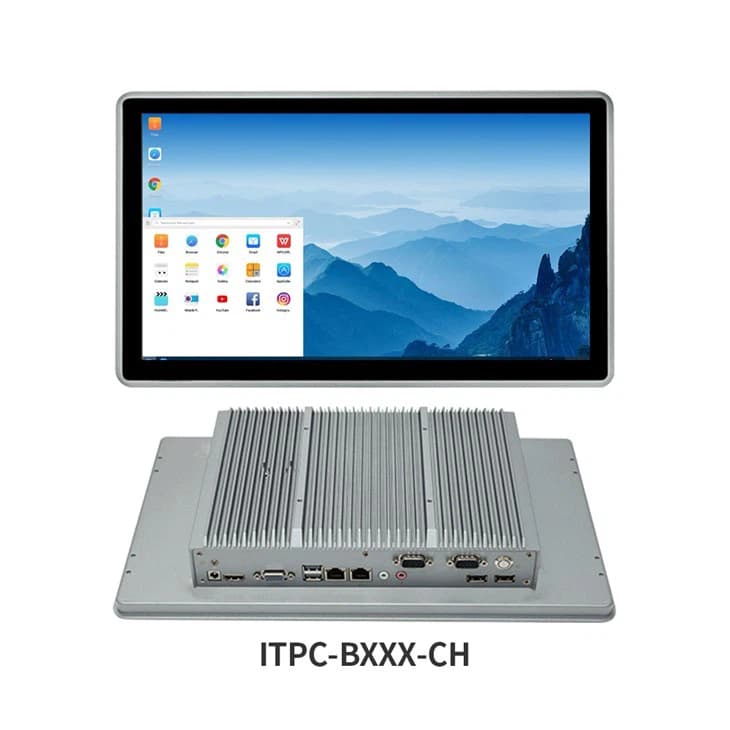

ITPC-B156-CH2
15.6" industrial touch panel with Intel Celeron J6412, triple display
Touch Panel PCs
Features
- Intel Celeron J6412 (4 cores, 2.0GHz up to 2.6GHz)
- 2x DDR4 2133/2400MHz memory up to 32GB
- 15.6" display with 1x HDMI, 1x LVDS, 1x VGA
- 2x LAN option
- DC 12V (9-36V customizable)
- Fanless design
Datasheet
PDF documentation
3 Years
Warranty
Fast
Delivery
Support
In English
Technical Specifications
Display
15.6"
Processor
Intel Celeron J6412 (4 cores, 2.0GHz up to 2.6GHz)
Memory
2x DDR4 2133/2400MHz, up to 32GB
Network
2x LAN option
Storage
1x M.2 2280 SATA + 1x 2.5" SATA
Display Outputs
1x HDMI, 1x LVDS, 1x VGA
Power Supply
DC 12V (9-36V customizable)
Dimensions
384 × 234 × 65mm
Expansion & Connectivity
1x M.2 2280 SATA
1x 2.5" SATA slot
Operating Environment
Operating Temperature0°C to 50°C (commercial), -20°C to 60°C (industrial)
Storage Temperature-30°C to 70°C
Humidity5% - 95%
Supported OS
Windows 10Windows 11Linux
Applications
HMI PanelMachine ControlDigital Signage
Description
ITPC-B156-CH2 is 15.6 inch industrial panel with Intel Elkhart Lake processor and triple display support.
