Home/Products/Mini PCs/N5 Plus

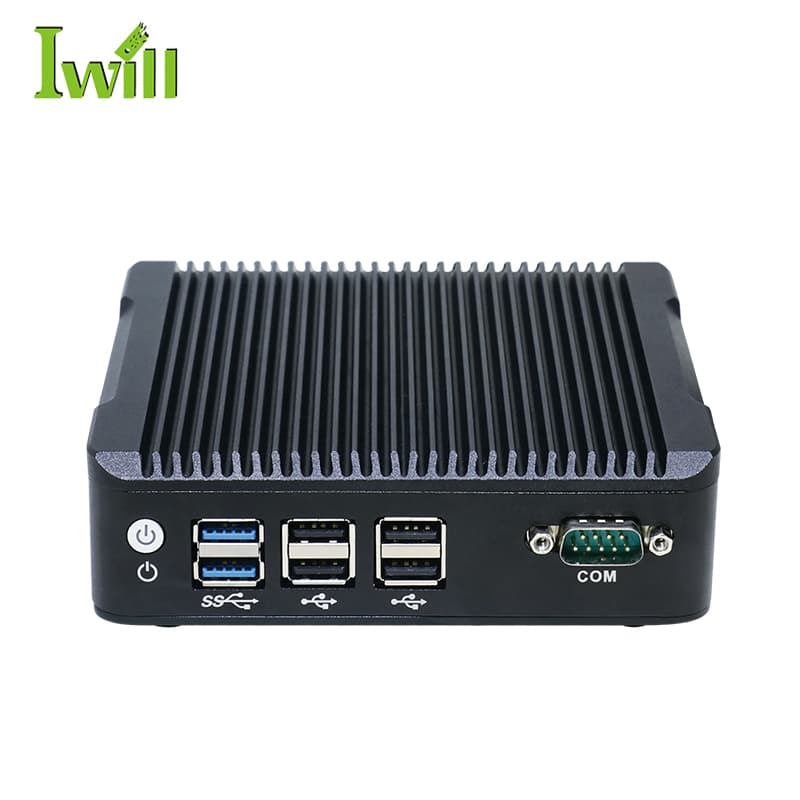

N5 Plus – Fanless Mini PC

Compact mini PC with Intel Pentium J3710, 4K display

N5 Plus - Compact mini PC with Intel Pentium J3710, 4K display | IWILL Technology

Mini PCs

Features

Intel Pentium J3710 (4 cores, 1.6GHz up to 2.64GHz)
DDR3L 1600MHz memory up to 8GB
4K display support (1x DP, 2x HDMI)
2x RJ45 LAN
Fanless design
2x 2.5" HDD + 1x mSATA

PDF documentation

3 Years

Warranty

Fast

Delivery

Support

In English

Technical Specifications

Processor

Intel Pentium J3710 (4 cores, 1.6GHz up to 2.64GHz)

Memory

1x DDR3L 1600MHz, up to 8GB

Network

2x RJ45 LAN

Display

1x DP, 2x HDMI (4096×2160)

Storage

2x 2.5" HDD + 1x mSATA

I/O

4x USB 2.0, 1x COM

Dimensions

134 × 126 × 38.5mm

Weight

0.7kg

Expansion & Connectivity

2x 2.5" HDD slots

1x mSATA

Operating Environment

Operating Temperature0°C to 45°C

Storage Temperature-20°C to 70°C

Humidity5% - 95%

Supported OS

Windows 11Windows 10Linux (Ubuntu/Fedora)

Applications

WorkstationCAD/CAMVideo EditingGaming

Description

N5 Plus is a compact mini PC with Intel Pentium J3710 and 4K resolution support.
