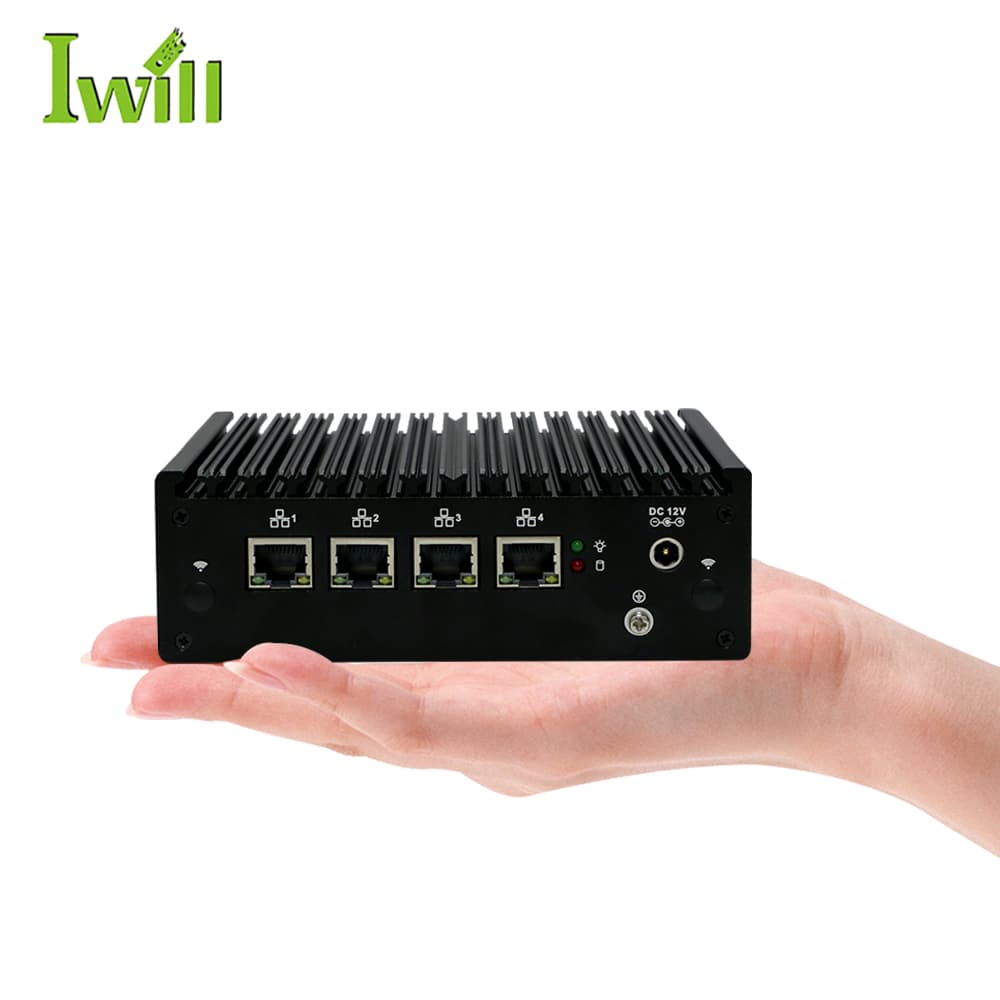

SPC-N5095-4L – Firewall Appliance (OPNsense/pfSense)

Name: SPC-N5095-4L Firewall Appliance (OPNsense/pfSense)
Brand: IWILL
SKU: SPC-N5095-4L

Budget firewall with Intel N5095 and 4x 2.5G LAN

Network Security

Features

Intel Celeron N5095
4x Intel 2.5G LAN
DDR4 memory up to 16GB
Fanless design
AES-NI support
Compact chassis

Email WhatsApp

Datasheet

PDF documentation

3 Years

Warranty

Fast

Delivery

Support

In English

Technical Specifications

Processor

Intel Celeron N5095 (4 cores, up to 2.9GHz)

Memory

1x DDR4, up to 16GB

Network

4x Intel i225-V 2.5G LAN

Storage

M.2 NVMe

Power Supply

DC 12V

Expansion & Connectivity

1x M.2 Key E (for Wi-Fi)

1x Mini-PCIe (USB signal only)

Operating Environment

Operating Temperature0°C to 50°C

Storage Temperature-20°C to 70°C

Humidity5% - 95%

Supported OS

pfSenseOPNsenseOpenWrtLinux

Applications

SOHO FirewallVPN GatewaypfSense/OPNsense

Description

SPC-N5095-4L is a cost-effectivefirewall appliance for small businesses.
