2U6L-ADL – Firewall Appliance (OPNsense/pfSense)

Name: 2U6L-ADL Firewall Appliance (OPNsense/pfSense)
Brand: IWILL
SKU: 2U6L-ADL

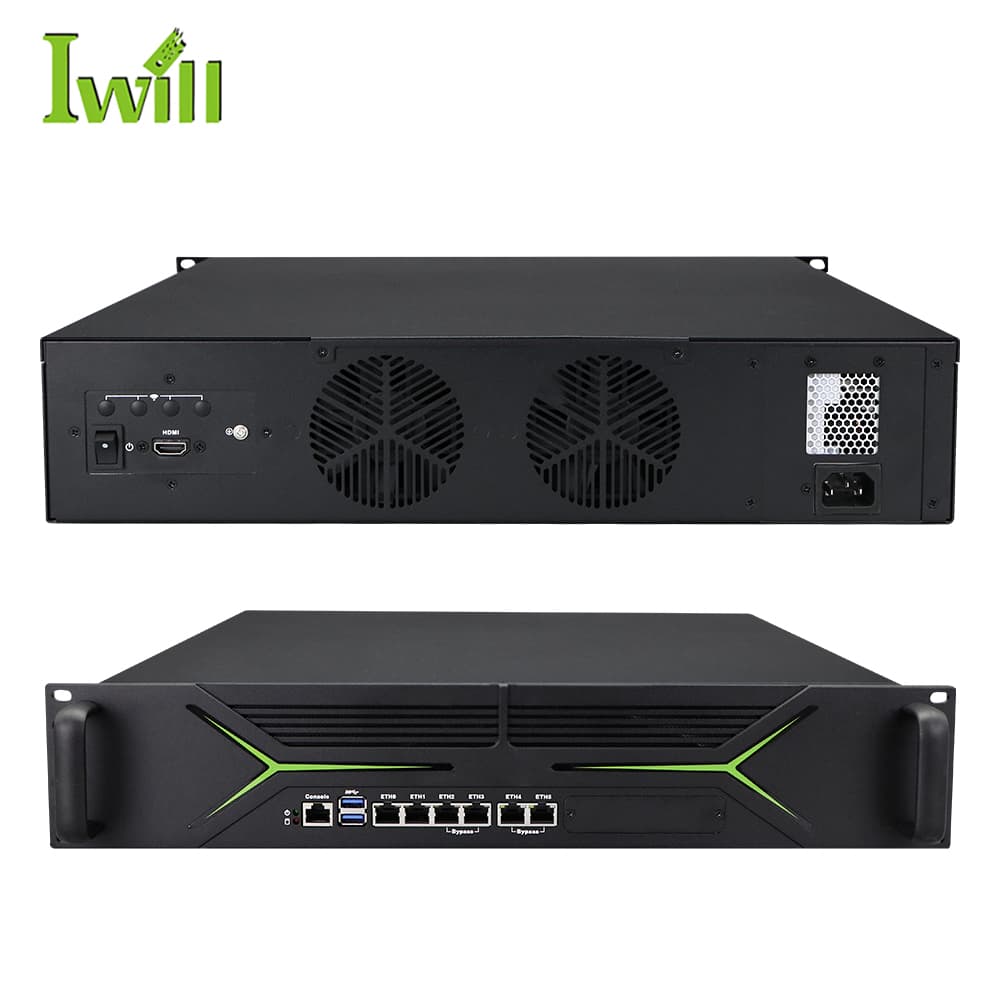

2U Rackmount firewall with Intel Alder Lake Desktop and 6x 1G LAN, redundant PSU option

Network Security

Features

Intel i3-12100 / i5-12400 / i7-12700 (Alder Lake)
6x 1000M LAN (2 bypass groups)
2x DDR4 3200MHz memory up to 128GB
2U Rackmount chassis
AC input with redundant power supply option
AES-NI encryption

Email WhatsApp

Datasheet

PDF documentation

3 Years

Warranty

Fast

Delivery

Support

In English

Technical Specifications

Processor

Intel i3-12100 / i5-12400 / i7-12700 (Alder Lake)

Memory

2x DDR4 3200MHz, up to 128GB

Network

6x 1000M LAN (2 bypass groups)

Display

1x HDMI

Storage

1x M.2 M-key SATA + 1x M.2 M-key + 1x M.2 E-key + 1x M.2 B-key

Form Factor

2U Rackmount

Dimensions

482 × 471 × 88.8mm

Weight

7.19kg

Power Supply

AC input with redundant power supply option

Expansion & Connectivity

1x M.2 M-key SATA

1x M.2 M-key

1x M.2 E-key

1x M.2 B-key

Operating Environment

Operating Temperature0°C to 45°C

Storage Temperature-20°C to 70°C

Humidity5% - 90%

Supported OS

Windows ServerLinuxFreeNASTrueNASpfSense

Applications

Datacenter FirewallNAS/StorageEnterprise Security

Description

2U6L-ADL is 2U rackmount firewall with Intel Alder Lake Desktop processor and extended capabilities.
