IBOX-1226 – Fanless Industrial PC

Name: IBOX-1226 Fanless Industrial PC
Brand: IWILL
SKU: IBOX-1226

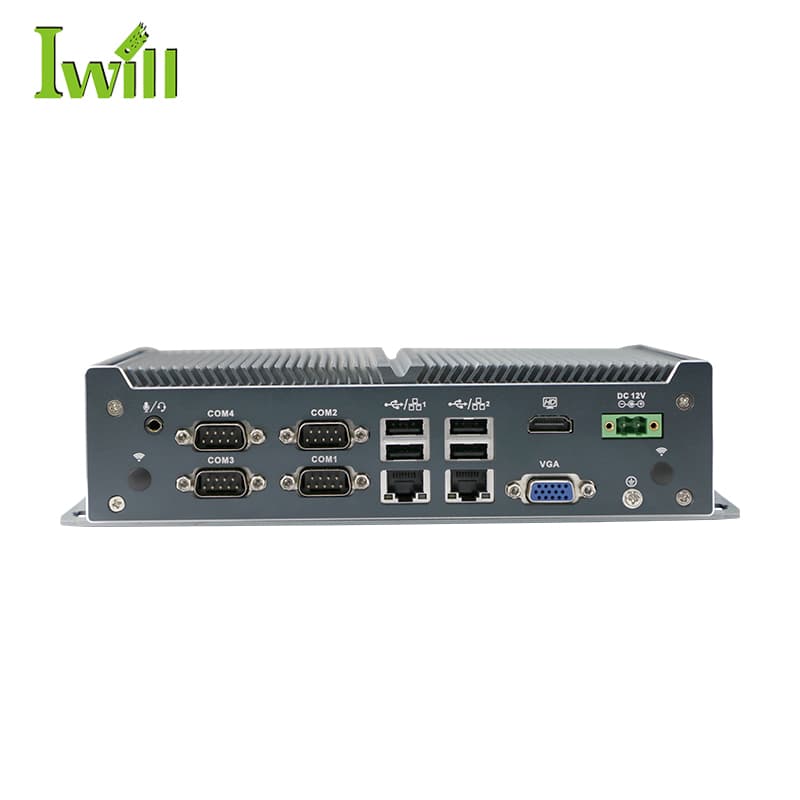

Compact industrial PC with Intel Celeron J6412 and 3x 2.5G LAN

Industrial PCs

Features

Intel Celeron J6412 (4 cores, 2.0GHz up to 2.6GHz)
3x 2.5G LAN
4x COM ports
TPM2.0, watchdog, PXE boot
Fanless design
1x HDMI, 1x DP

Email WhatsApp

Datasheet

PDF documentation

3 Years

Warranty

Fast

Delivery

Support

In English

Technical Specifications

Processor

Intel Celeron J6412 (4 cores, 2.0GHz up to 2.6GHz)

Memory

1x DDR4 3200MHz, up to 32GB

Network

3x 2.5G LAN

Serial Ports

4x COM

Storage

1x M.2 SATA + 1x 2.5" HDD/SSD

I/O

2x USB 2.0, 2x USB 3.0

Display

1x HDMI, 1x DP (2.5G LAN)

Dimensions

186 × 140 × 66mm

Weight

1.5kg

Features

TPM2.0, watchdog, PXE boot

Expansion & Connectivity

1x M.2 SATA

1x 2.5" HDD/SSD slot

Operating Environment

Operating Temperature-20°C to 60°C

Storage Temperature-30°C to 70°C

Humidity5% - 95%

Supported OS

Windows 10Windows 11Linux

Applications

Serial ServerPLC GatewayAutomation

Description

IBOX-1226 is a cost-effective industrial PC with Intel Elkhart Lake processor.
