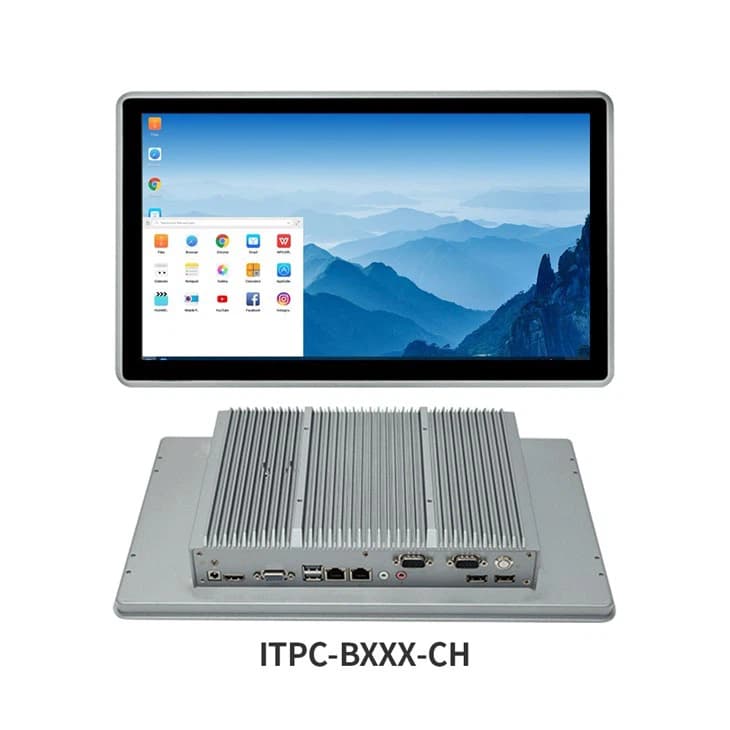

ITPC-A156C
15.6" industrial touch panel with Intel Celeron/Core options, DC 9-36V
Touch Panel PCs
Features
- Celeron J6412 / i3-10110U (Elkhart Lake / Comet Lake)
- 1x DDR4 2400/2666/3200MHz memory up to 32GB
- 2x 1000M LAN (option 4x)
- 1x HDMI
- DC 9-36V with protection
- Watchdog option
Datasheet
PDF documentation
3 Years
Warranty
Fast
Delivery
Support
In English
Technical Specifications
Display
15.6"
Processor
Celeron J6412 / i3-10110U (Elkhart Lake / Comet Lake)
Memory
1x DDR4 2400/2666/3200MHz, up to 32GB
Network
2x 1000M LAN (option 4x)
Storage
1x M.2 2280 SATA + 1x M.2 SATA + 1x 2.5" HDD (option)
Display Outputs
1x HDMI
I/O
2x COM option
Power Supply
DC 9-36V with protection
Features
Watchdog (option)
Expansion & Connectivity
1x M.2 2280 SATA
1x M.2 SATA
1x 2.5" HDD slot (option)
Operating Environment
Operating Temperature-10°C to 60°C
Storage Temperature-20°C to 70°C
Humidity5% - 95%
Supported OS
Windows 10Windows 11Linux
Applications
HMI PanelKioskIndustrial Automation
Description
ITPC-A156C is 15.6 inch industrial panel with flexible CPU options.
