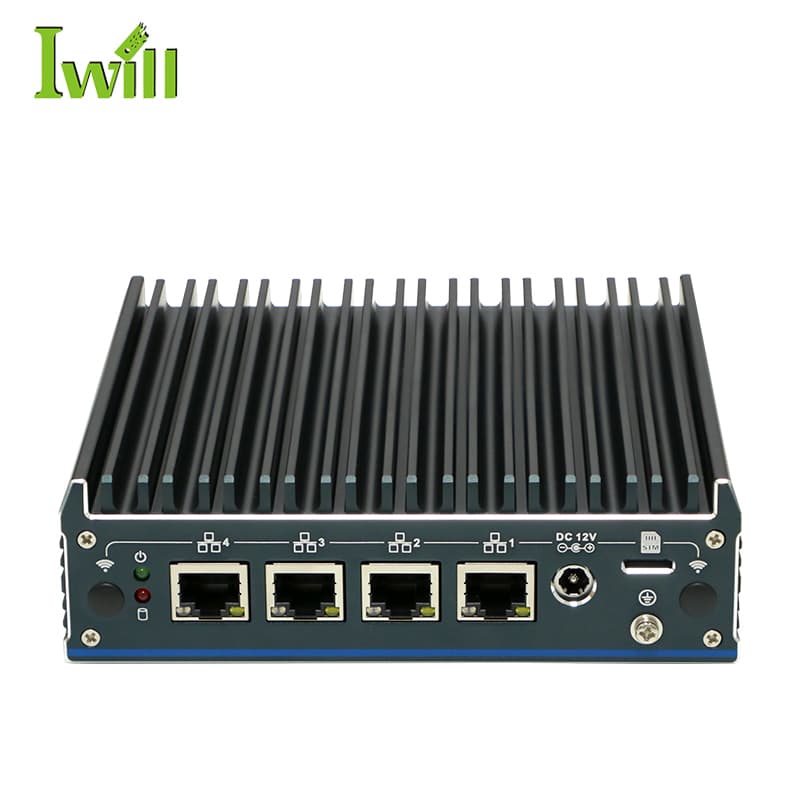

Nano-N1141 – Fanless Mini PC

Name: Nano-N1141 Fanless Mini PC
Brand: IWILL
SKU: N1141

Mini router with Intel Celeron J6412 and 4x 2.5G LAN, TPM 2.0

Mini PCs

Features

Intel Celeron J6412 (4 cores, 2.0GHz up to 2.6GHz)
DDR4 3200MHz memory up to 32GB
4x 2.5G LAN
1x HDMI, 1x DP
TPM 2.0
Fanless design

Email WhatsApp

Datasheet

PDF documentation

3 Years

Warranty

Fast

Delivery

Support

In English

Technical Specifications

Processor

Intel Celeron J6412 (4 cores, 2.0GHz up to 2.6GHz)

Memory

1x DDR4 3200MHz, up to 32GB

Network

4x 2.5G LAN

Display

1x HDMI, 1x DP (4096×2160@60Hz)

Storage

1x M.2 2280 + 1x M.2 SATA + 1x M.2 WiFi/BT + 1x 2.5" HDD/SSD

I/O

2x USB 2.0, 2x USB 3.1

Dimensions

144 × 136.7 × 42mm

Weight

0.78kg

Features

TPM 2.0, firewall/VPN compatible

Expansion & Connectivity

1x M.2 2280

1x M.2 SATA

1x M.2 WiFi/BT

1x 2.5" HDD/SSD slot

Operating Environment

Operating Temperature-10°C to 60°C

Storage Temperature-20°C to 70°C

Humidity5% - 95%

Supported OS

pfSenseOPNsenseLinuxWindows 10/11

Applications

pfSense/OPNsenseSoftware RouterVPN GatewayFirewall

Description

Nano-N1141 is a budget firewall appliance with 4x 2.5G network ports and Intel Elkhart Lake processor.
