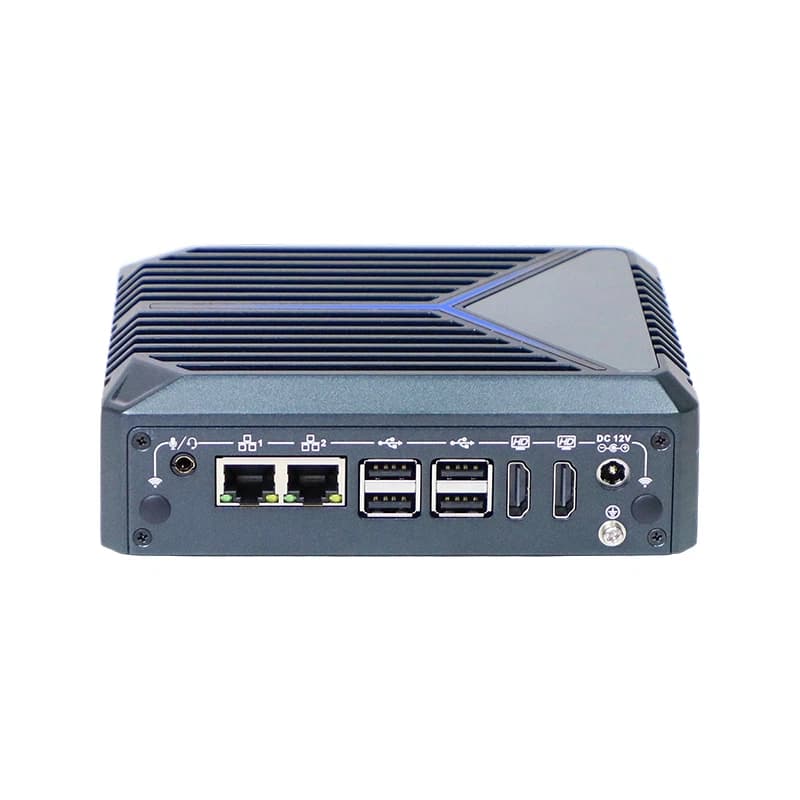

N1522 – Mini PC

Name: N1522 Mini PC
Brand: IWILL
SKU: N1522

Compact industrial mini PC with Intel N150, 2x M.2, 8x USB, 9-36V DC input

Mini PCs

Features

Intel Twin Lake N150 (4 cores, up to 3.6GHz)
DDR5 4800MHz up to 16GB
2x HDMI 4K@60Hz
2x Gigabit LAN
8x USB (4x USB 3.2 + 4x USB 2.0)
Wide range 9-36V DC input

Email WhatsApp

3 Years

Warranty

Fast

Delivery

Support

In English

Technical Specifications

Processor

Intel Twin Lake N150 (4 cores, 4 threads, up to 3.6GHz)

Memory

1x DDR5 4800MHz SODIMM, up to 16GB

Network

2x RTL8111H Gigabit LAN (10/100/1000M)

Display

2x HDMI (4096×2160@60Hz)

Storage

2x M.2 2280 + 1x 2.5" HDD/SSD

I/O

4x USB 3.2, 4x USB 2.0, 2x COM RS232/RS485

Dimensions

150 × 126.5 × 45mm

Power Supply

9-36V DC wide range

Features

Optional CAN bus, GPIO, Wi-Fi/4G module

Expansion & Connectivity

2x M.2 2280

1x 2.5" HDD/SSD

Optional CAN bus / GPIO

Operating Environment

Operating Temperature-10°C to 60°C

Storage Temperature-20°C to 70°C

Humidity5% - 95% non-condensing

Supported OS

Windows 10Windows 11Linux (Ubuntu/Debian)

Applications

Edge ComputingIoT GatewayDigital SignageIndustrial Automation

Description

N1522 is a compact industrial mini PC with Intel N150 processor and DDR5 memory, designed for edge computing, IoT and digital signage with wide range of power supply 9-36V DC.
