Home/Products/Mini PCs/Nano-N3422

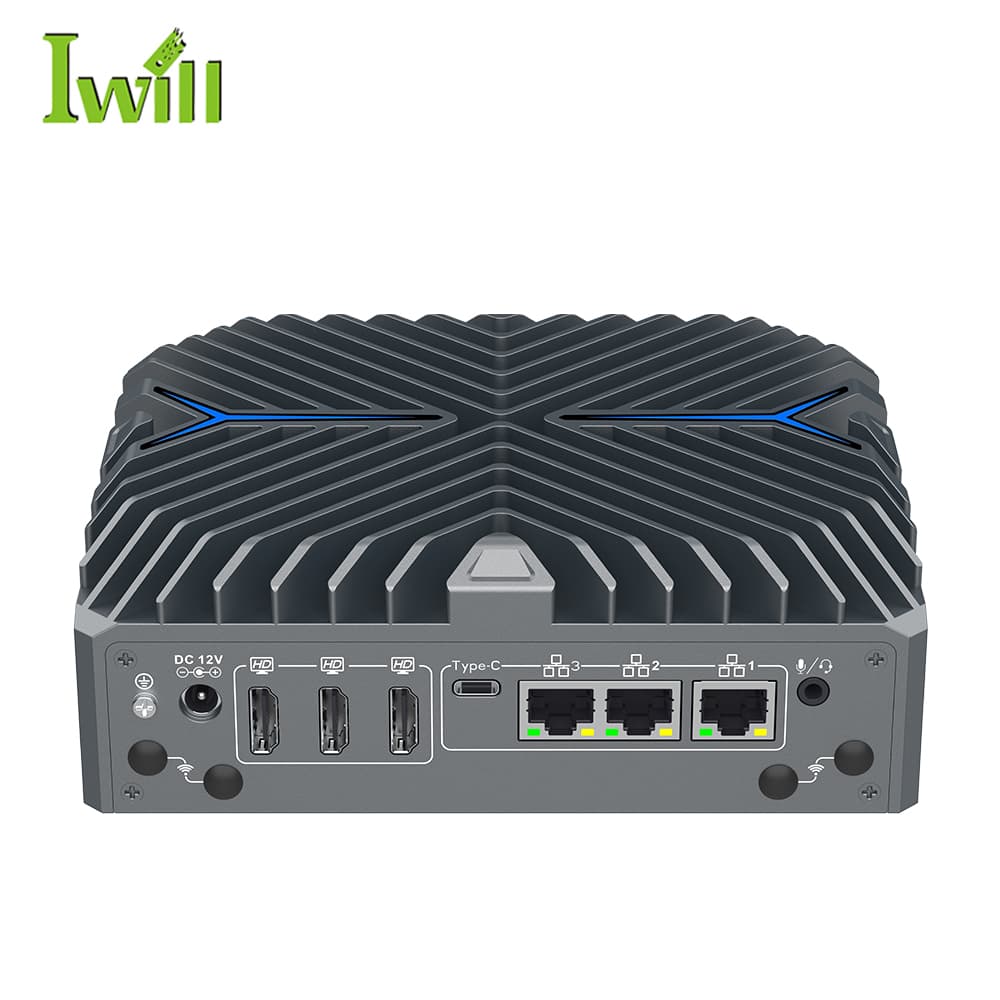

Nano-N3422 – Fanless Mini PC

Powerful mini PC with Intel Core Ultra 5/7 and 3x 2.5G LAN, DDR5

Nano-N3422 - Powerful mini PC with Intel Core Ultra 5/7 and 3x 2.5G LAN, DDR5 | IWILL Technology

Mini PCs

Features

Intel Core Ultra 5 125U / Ultra 7 155U (12 cores, up to 4.8GHz)
DDR5 4800MHz memory up to 32GB
3x 2.5G LAN
3x HDMI + 1x Type-C
TPM 2.0
Fanless design

PDF documentation

3 Years

Warranty

Fast

Delivery

Support

In English

Technical Specifications

Processor

Intel Core Ultra 5 125U / Ultra 7 155U (12 cores, up to 4.8GHz)

Memory

1x DDR5 4800MHz, up to 32GB

Network

3x 2.5G LAN

Display

3x HDMI + 1x Type-C (4096×2160@60Hz)

Storage

1x M.2 SSD + 2x M.2 2280 (NVMe)

I/O

2x USB 3.1, 2x USB 2.0

Dimensions

170 × 140 × 58mm

Weight

1.1kg

Features

TPM 2.0

Expansion & Connectivity

1x M.2 SSD

2x M.2 2280 NVMe

Operating Environment

Operating Temperature-10°C to 60°C

Storage Temperature-20°C to 70°C

Humidity5% - 95% relative humidity

Supported OS

Windows 11Windows 10LinuxpfSenseOPNsense

Applications

Software RouterVPN GatewayFirewallNetwork Appliance

Description

Nano-N3422 is the most powerfulmini PC in the series with Intel Core Ultra processor.
