Home/Products/Mini PCs/Nano-N1221

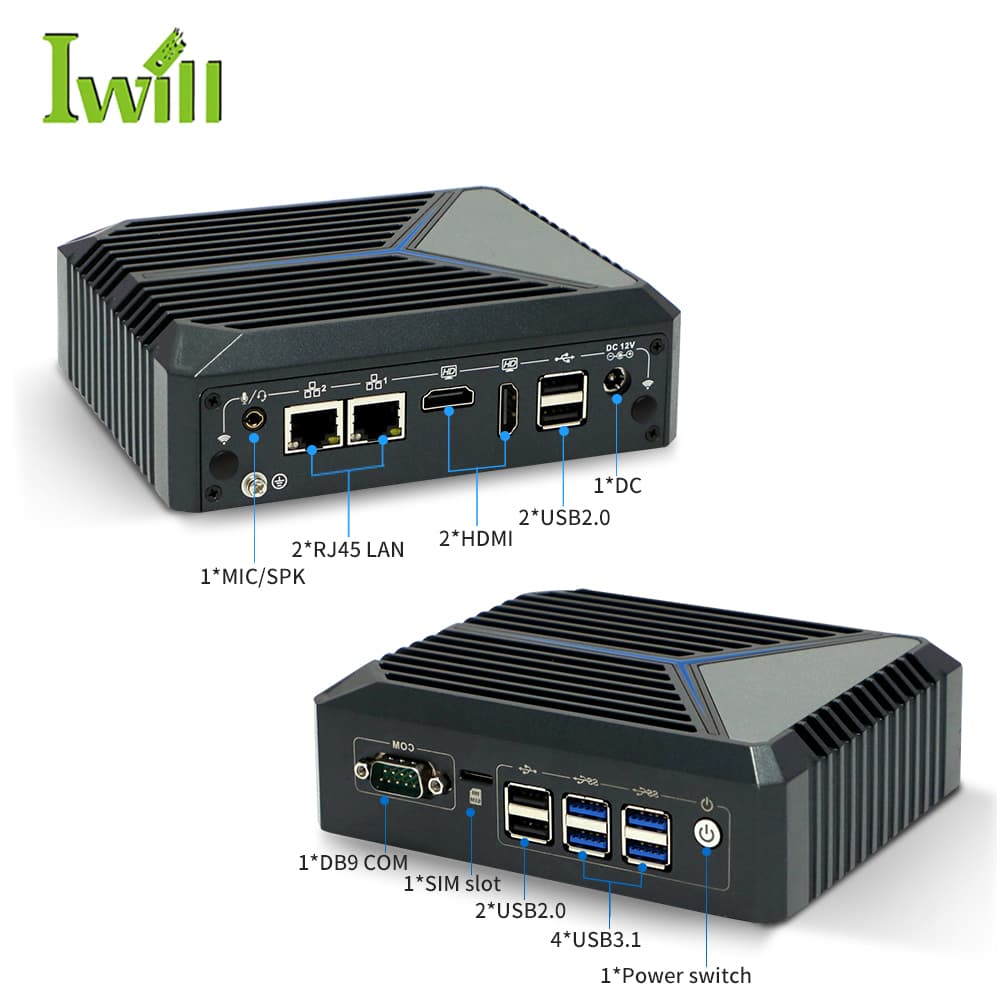

Nano-N1221 – Fanless Mini PC

Mini PC with Intel Celeron J6412, 2x HDMI 4K, TPM 2.0

Nano-N1221 - Mini PC with Intel Celeron J6412, 2x HDMI 4K, TPM 2.0 | IWILL Technology

Mini PCs

Features

Intel Celeron J6412 (4 cores, 2.0GHz up to 2.6GHz)
DDR4 3200MHz memory up to 32GB
2x RJ45 LAN
2x HDMI 4K@60Hz outputs
TPM 2.0
Fanless design

PDF documentation

3 Years

Warranty

Fast

Delivery

Support

In English

Technical Specifications

Processor

Intel Celeron J6412 (4 cores, 2.0GHz up to 2.6GHz)

Memory

1x DDR4 3200MHz, up to 32GB

Network

2x RJ45 LAN

Display

2x HDMI (4096×2160@60Hz)

Storage

1x M.2 2280 + 1x M.2 2280 SATA + 1x 2.5" HDD/SSD

I/O

2x USB 2.0, 1x DB9 COM

Dimensions

185 × 137 × 44mm

Weight

0.84kg

Features

TPM 2.0

Expansion & Connectivity

1x M.2 2280

1x M.2 2280 SATA

1x 2.5" HDD/SSD slot

Operating Environment

Operating Temperature-10°C to 60°C

Storage Temperature-20°C to 70°C

Humidity5% - 95%

Supported OS

Windows 11Windows 10LinuxpfSenseOPNsense

Applications

FirewallVPN GatewayThin ClientDigital Signage

Description

Nano-N1221 is a cost-effective fanless mini PC with Intel Elkhart Lake processor.
