Home/Products/Mini PCs/Nano-N1241

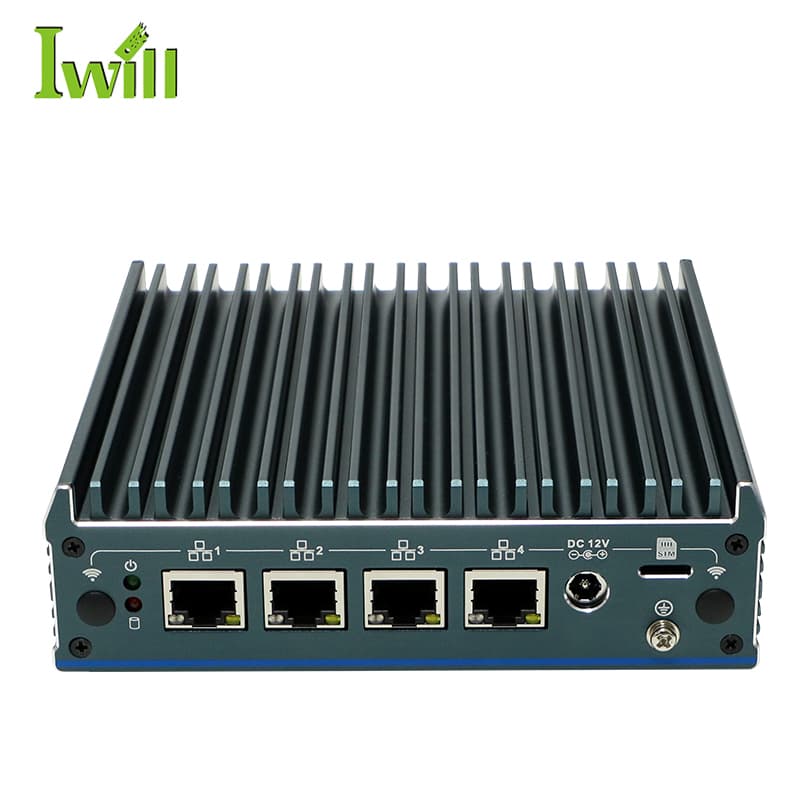

Nano-N1241 – Fanless Mini PC

Mini router with Intel Alder Lake N200 and 4x 2.5G LAN, TPM 2.0

Nano-N1241 - Mini router with Intel Alder Lake N200 and 4x 2.5G LAN, TPM 2.0 | IWILL Technology

Mini PCs

Features

Intel Alder Lake N200 (4 cores, up to 3.7GHz)
DDR4 3200MHz memory up to 16GB
4x 2.5G LAN
1x HDMI, 1x DP
TPM 2.0
Fanless design

PDF documentation

3 Years

Warranty

Fast

Delivery

Support

In English

Technical Specifications

Processor

Intel Alder Lake N200 (4 cores, up to 3.7GHz)

Memory

1x DDR4 3200MHz, up to 16GB

Network

4x 2.5G LAN

Display

1x HDMI, 1x DP (4096×2160@60Hz)

Storage

3x M.2 (WiFi/4G/5G) + 1x M.2 2280 + 1x M.2 SATA

I/O

3x USB 2.0, 1x USB 3.1

Dimensions

144 × 136.7 × 42mm

Weight

0.79kg

Features

TPM 2.0, router compatible

Expansion & Connectivity

3x M.2 (WiFi/4G/5G)

1x M.2 2280

1x M.2 SATA

Operating Environment

Operating Temperature0°C to 50°C

Storage Temperature-20°C to 70°C

Humidity5% - 95% relative humidity

Supported OS

Windows 11pfSenseOPNsenseLinuxProxmox

Applications

pfSense/OPNsenseSoftware RouterVPN GatewayFirewall

Description

Nano-N1241 is a compact mini PC with 4 network ports and Intel Alder Lake N200 processor.
