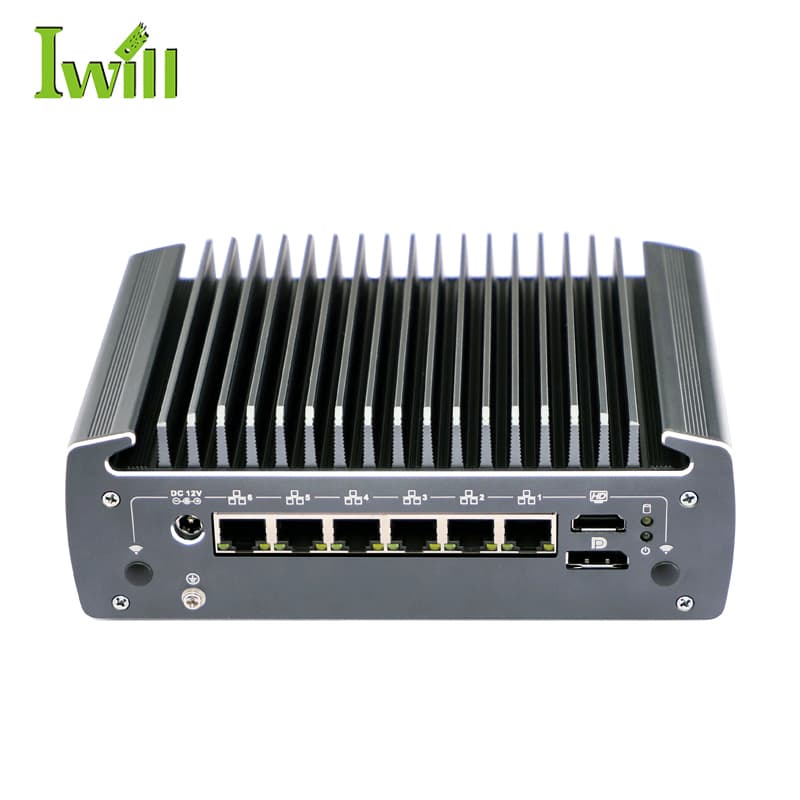

Nano-N3061 – Firewall Appliance (OPNsense/pfSense)

Name: Nano-N3061 Firewall Appliance (OPNsense/pfSense)
Brand: IWILL
SKU: N3061

Firewall appliance with Intel Comet Lake 10th generation and 6x 2.5G LAN, PoE option

Network Security

Features

Intel i3-10110U / i5-10210U / i7-10810U (Comet Lake, up to 4.2GHz)
6x 2.5G LAN (3-6 PoE option)
2x DDR4 2666MHz memory up to 64GB
1x HDMI, 1x DP
Fanless design
AES-NI encryption

Email WhatsApp

Datasheet

PDF documentation

3 Years

Warranty

Fast

Delivery

Support

In English

Technical Specifications

Processor

Intel i3-10110U / i5-10210U / i7-10810U (Comet Lake, up to 4.2GHz)

Memory

2x DDR4 2666MHz, up to 64GB

Network

6x 2.5G LAN (3-6 PoE option)

Display

1x HDMI, 1x DP

Storage

1x M.2 B-key (5G) + 3x M.2 (WiFi/4G/5G) + 1x M.2 SATA

I/O

1x COM

Dimensions

186 × 126.5 × 66mm

Weight

1.3kg

Expansion & Connectivity

1x M.2 B-key (5G)

3x M.2 (WiFi/4G/5G)

1x M.2 SATA

Operating Environment

Operating Temperature-10°C to 60°C

Storage Temperature-20°C to 70°C

Humidity5% - 95%

Supported OS

pfSenseOPNsenseLinuxWindows Server

Applications

Enterprise FirewallVPN GatewayNetwork Appliance

Description

Nano-N3061 is a powerful firewall appliance with Intel Comet Lake processor, 10th generation.
