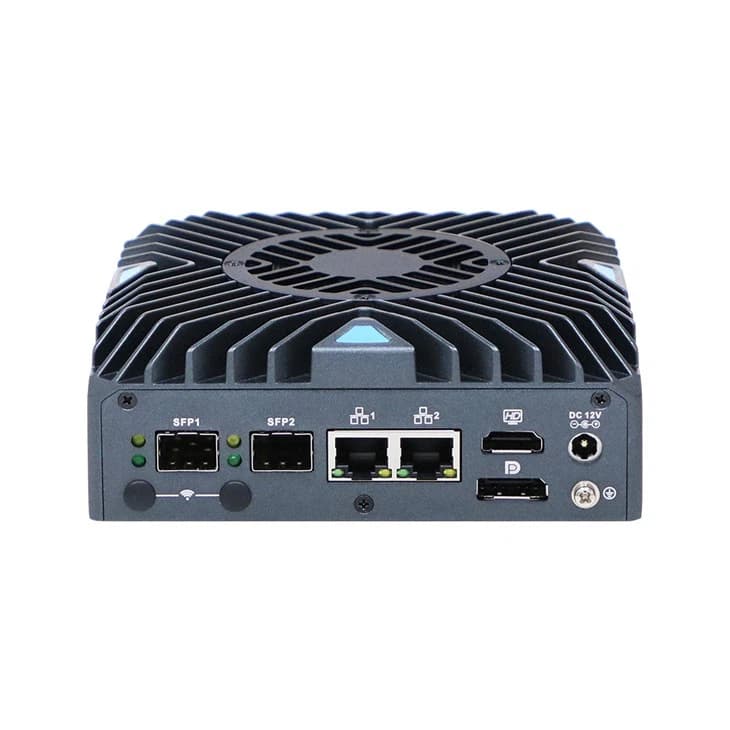

N1342 – Firewall Appliance (OPNsense/pfSense)

Name: N1342 Firewall Appliance (OPNsense/pfSense)
Brand: IWILL
SKU: N1342

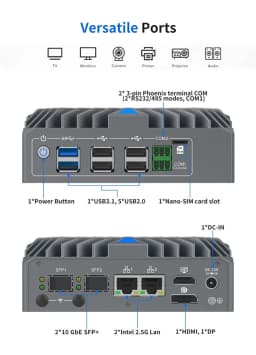

Compact firewall mini PC with 2x 10G SFP+, 2x 2.5G LAN, Intel N150, RS232/485

Network Security

Features

Intel Twin Lake N150 (4 cores, up to 3.6GHz)
2x 10GbE SFP+ (Intel 82599)
2x Intel i226-V 2.5GbE LAN
DDR5 4800MHz up to 16GB
2x COM RS232/RS485 (Phoenix connector)
TPM 2.0

Email WhatsApp

3 Years

Warranty

Fast

Delivery

Support

In English

Technical Specifications

Processor

Intel Twin Lake N150 (4 cores, 4 threads, up to 3.6GHz)

Memory

1x DDR5 4800MHz SODIMM, up to 16GB

Network

2x Intel i226-V 2.5GbE + 2x 10GbE SFP+ (Intel 82599)

Display

1x HDMI + 1x DisplayPort (dual 4K)

Storage

1x M.2 2280 + 1x 2.5" HDD/SSD

I/O

1x USB 3.1, 5x USB 2.0, 2x COM RS232/RS485

Dimensions

135 × 135 × 48mm

Features

TPM 2.0, PXE, Wake-on-LAN, Watchdog

Expansion & Connectivity

1x M.2 2280

1x 2.5" HDD/SSD

M.2 slot for Wi-Fi / 4G/5G module

Operating Environment

Operating Temperature-10°C to 60°C

Storage Temperature-20°C to 70°C

Humidity5% - 95% non-condensing

Supported OS

pfSenseOPNsenseLinux (Ubuntu/Debian)Windows 10/11

Applications

Firewall / RouterNetwork StorageEdge ComputingIoT Gateway

Description

N1342 is a compact network appliance with Intel N150 processor, 2x 10GbE SFP+ and 2x 2.5GbE LAN ports for firewall, router and edge computing applications with minimal power consumption.
