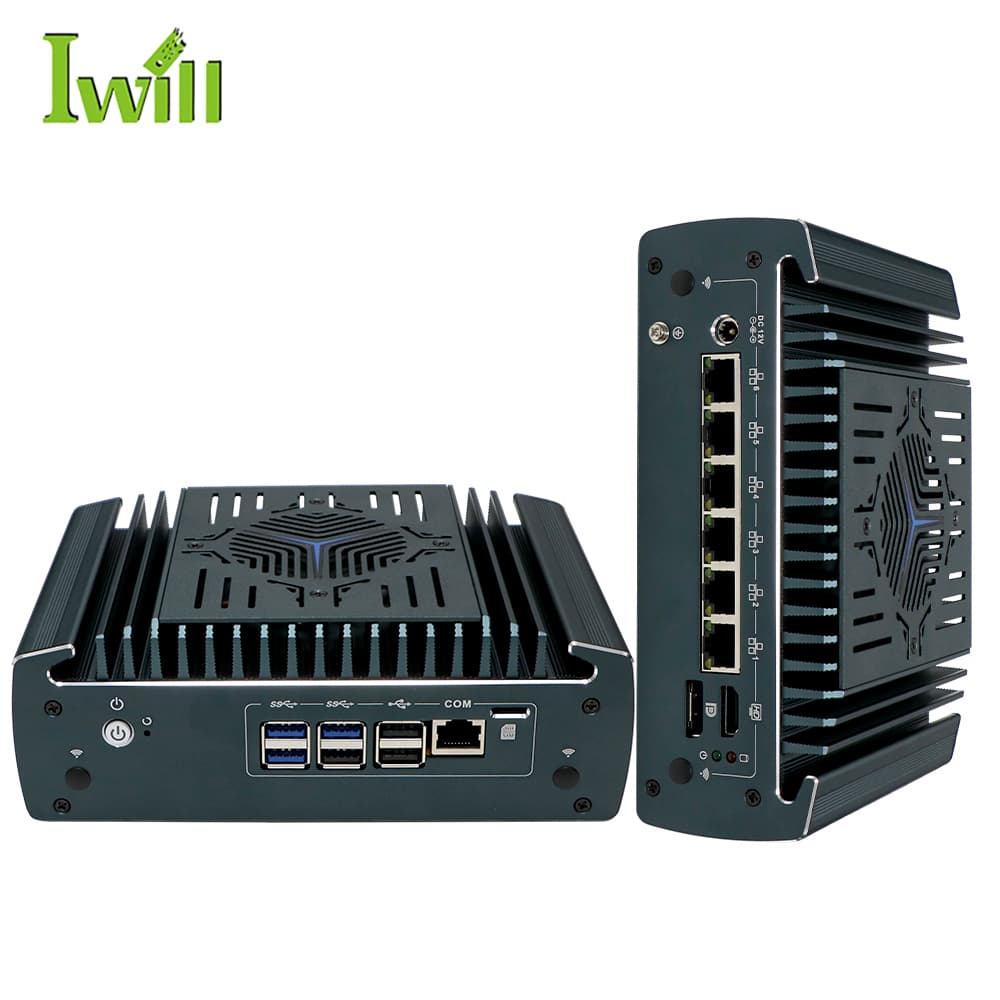

Nano-N3161 – Firewall Appliance (OPNsense/pfSense)

Name: Nano-N3161 Firewall Appliance (OPNsense/pfSense)
Brand: IWILL
SKU: N3161

Firewall appliance with Intel Alder Lake and 6x 2.5G LAN, PoE option

Network Security

Features

Intel i3-1215U / i5-1235U / i7-1255U (Alder Lake, up to 4.4GHz)
6x 2.5G LAN (1-4 with PoE option)
2x DDR4 3200MHz memory up to 64GB
1x DP 1.4a, 1x HDMI 2.1
Fanless design
AES-NI encryption

Email WhatsApp

Datasheet

PDF documentation

3 Years

Warranty

Fast

Delivery

Support

In English

Technical Specifications

Processor

Intel i3-1215U / i5-1235U / i7-1255U (Alder Lake, up to 4.4GHz)

Memory

2x DDR4 3200MHz, up to 64GB

Network

6x 2.5G LAN (1-4 PoE option)

Display

1x DP 1.4a, 1x HDMI 2.1

Storage

3x M.2 (WiFi/4G/5G) + 1x M.2 NVMe + 1x M.2 B-key

I/O

3x USB 3.1, 3x USB 2.0, 1x COM

Dimensions

186 × 126.5 × 66mm

Weight

1.3kg

Expansion & Connectivity

3x M.2 (WiFi/4G/5G)

1x M.2 NVMe

1x M.2 B-key

Operating Environment

Operating Temperature-10°C to 60°C

Storage Temperature-20°C to 70°C

Humidity5% - 95% non-condensing

Supported OS

pfSenseOPNsenseVyOSLinuxWindows 10/11

Applications

Enterprise FirewallVPN GatewayIDS/IPSNetwork Monitoring

Description

Nano-N3161 is a professional firewall appliance with Intel Alder Lake 12th generation and 6x 2.5G LAN ports.
