Nano-N3261 – Firewall Appliance (OPNsense/pfSense)

Name: Nano-N3261 Firewall Appliance (OPNsense/pfSense)
Brand: IWILL
SKU: N3261

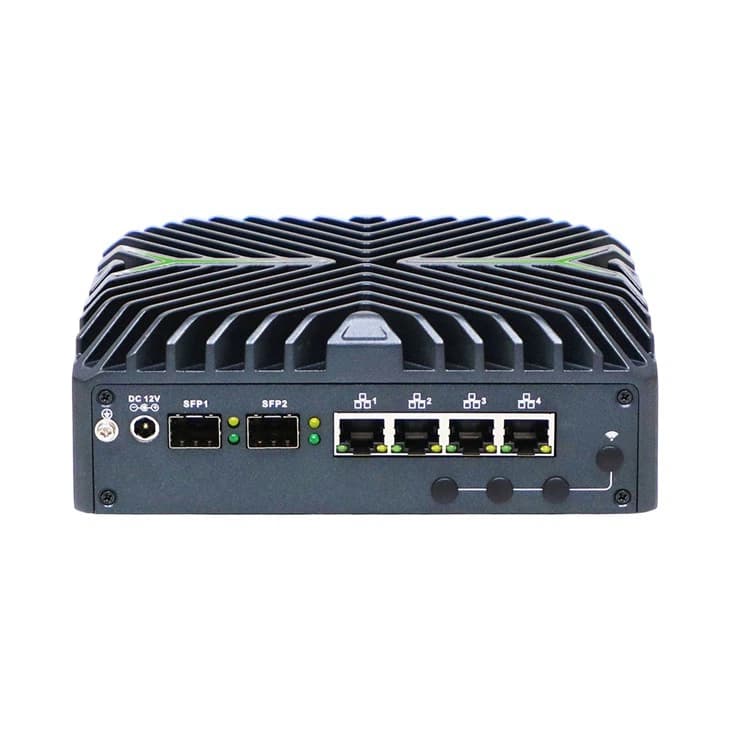

10G SFP+ fanless firewall with Intel 12th generation, 4x 2.5G LAN, DDR5

Network Security

Features

Intel Core i5-1235U / i7-1255U (10 cores, 12 threads)
2x 10GbE SFP+ (Intel 82599)
4x Intel i226 2.5GbE LAN
DDR5 4800MHz up to 64GB (2x SODIMM)
Fanless design
RJ45 console port

Email WhatsApp

3 Years

Warranty

Fast

Delivery

Support

In English

Technical Specifications

Processor

Intel Core i5-1235U / i7-1255U (10 cores, 12 threads, up to 4.7GHz)

Memory

2x DDR5 4800MHz SODIMM, up to 64GB

Network

4x Intel i226 2.5GbE + 2x 10GbE SFP+ (Intel 82599)

Display

1x HDMI + 1x DisplayPort + 1x USB-C (video)

Storage

1x M.2 2280 + 1x 2.5" HDD/SSD

I/O

2x USB 2.0, 2x USB 3.2, 1x RJ45 Console

Dimensions

170 × 140 × 58mm

Features

Intel vPro (LAN1), PXE, Wake-on-LAN, Watchdog

Expansion & Connectivity

1x M.2 2280

1x 2.5" HDD/SSD

Operating Environment

Operating Temperature-10°C to 60°C

Storage Temperature-20°C to 70°C

Humidity5% - 95% non-condensing

Supported OS

pfSenseOPNsenseLinux (Ubuntu/Debian)Windows 10/11

Applications

Enterprise FirewallSD-WAN GatewayISP Edge SecurityData Center Protection

Description

Nano-N3261 is a compact fanless firewall appliance with Intel Core, 12th generation, 4x 2.5GbE LAN and 2x 10G SFP+ ports for high-performance network security in enterprise and ISP environments.
