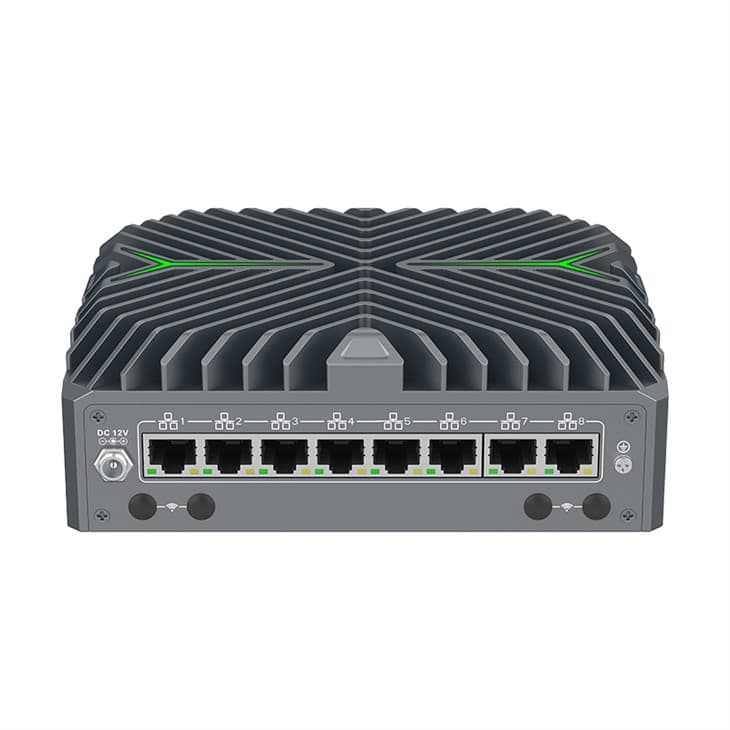

Nano-N3281 – Firewall Appliance (OPNsense/pfSense)

Name: Nano-N3281 Firewall Appliance (OPNsense/pfSense)
Brand: IWILL
SKU: N3281

Powerful network appliance with Intel Core Ultra and 8x 2.5G LAN, DDR5

Network Security

Features

Intel Core Ultra 5 125U / Ultra 7 155U (12-16 cores, up to 4.8GHz)
2x DDR5 5600MHz memory up to 64GB
8x 2.5G LAN (1 vPro, 7 with PoE option)
1x HDMI, 1x DP, 1x Type-C
TPM 2.0
Fanless design

Email WhatsApp

Discover the N3281 story

Datasheet

PDF documentation

3 Years

Warranty

Fast

Delivery

Support

In English

Technical Specifications

Processor

Intel Core Ultra 5 125U / Ultra 7 155U (12-16 cores, up to 4.8GHz)

Memory

2x DDR5 5600MHz, up to 64GB

Network

8x 2.5G LAN (1 vPro, 7 with PoE option)

Display

1x HDMI, 1x DP, 1x Type-C

Storage

1x M.2 2280 + 1x M.2 NVMe + 1x M.2 E-key + 1x M.2 B-key

I/O

4x USB 3.2, 1x COM

Dimensions

170 × 140 × 58mm

Weight

1.36kg

Features

TPM 2.0

Expansion & Connectivity

1x M.2 2280

1x M.2 NVMe

1x M.2 E-key

1x M.2 B-key

Operating Environment

Operating Temperature-10°C to 60°C

Storage Temperature-20°C to 70°C

Humidity5% - 95%

Supported OS

pfSenseOPNsenseLinuxWindows Server

Applications

Enterprise FirewallSD-WANVPN GatewayNetwork Appliance

Description

Nano-N3281 is the most powerfulnetwork appliance with Intel Core Ultra processor and 8 ports 2.5G LAN.
